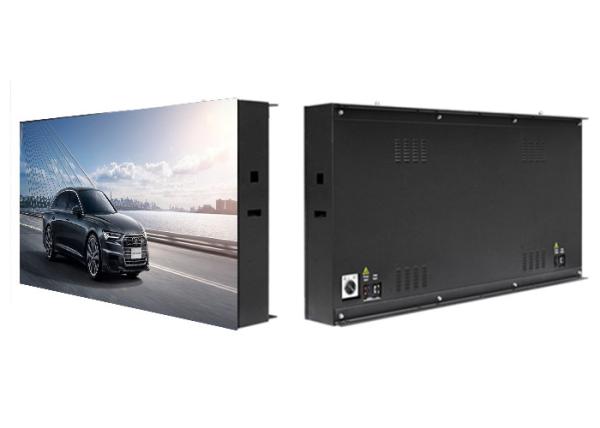

Outdoor P8 Front Service LED Display 1920HZ With 8000 Cd/Sqm
Brightness
P8 Outdoor smd Front Service LED Display Sign Features:
1. Dual-maintenance, from both the front side and the rear side.
People usually use its front maintenance
function.
2. Easy maintenance, easy to disassemble the modules with a
hexagonal screwdriver.
3. No screws, easier to disassemble the modules and mount the
modules on the cabinet.
4. 10mm pixel pitch is suitable for small banner screen.
5. New plastic cover with new mold, smaller module gaps and better
screen flatness.
SPECIFICATION OF C8 Outdoor Front Service LED Display
| Model | C8 |
| Pixel pitch(mm) | 8 |
| LED lamp | SMD 2727 |
| Module size(mm) | 320 x 320mm |
| Module weight(kg) | 1.55kg |
| Cabinet size(mm) | Customized |
| Pixel density(dots/㎡) | 15625 |
| Flatness error(mm) | ≤0.2 |
| Viewing angle | 120°/120°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 7500 nits |
| Color temperature(K) | 6500~9500 (Adjustable) |
| Contrast | 5000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 Hz |
| Gray scale | 16bit |
| Ave. power(W/㎡) | 900 |
| Max power(W/㎡) | 420 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Aluminum |
| Maintenance | Front and back maintenance |
| Protection | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 5S |
| Power requirements | AC90~264V |
| Life time(hrs) | 100,000 |
Advantages OF C8 Outdoor Front Service LED Display
1. Front Service Design: Unlike traditional front service design
with hydraulic pipes, which cost more on
project and with low IP rating due to the conjunction of structure.
C6.67 LED Sign is like normal cabinet
design, but bigger size. The IP rating can reach to IP65. All the
modules, cards and power supply can be
maintained from front. The whole sign can be attached to the wall
and no need maintenance space at
back
2. Convenient Sign Design, Easy to Install: C6.67 LED Sign is
easier to install, not picked on installation
environment. Most structure frames are integrated on the sign, no
complicated steel structure needed, just
fix the sign to the pole or to the wall. Extremely save
installation time and labor cost
3. Higher IP Rating, Perfect For Outdoor Advertising: Thanks to
special waterproof cabinet structure (no
rear doors), C6.67 sign screen can be IP65 waterproof. Aluminum
material and ventilation design
make sure perfect cooling effect. All these key features are
critical for outdoor commercial advertising
activities. No matter it is a small size LED screen or a huge
commercial LED billboard, C6.67 will present
you the trustworthy quality and high profile screen performance
Product Introduction
Where are the screen usually used?
This series is usually used for special fixed led display, which
has small space behind screen so that cannot provide with a
maintenance access, so they can only maintain in front. They are
widely used in Advertisement, Hostel, School, Stations, etc.
The advantages of this kind of display:
1. Easy installation and light weight can make it amount in the
wall or lift against the wall.
2. Front access design allows to make thicker LED display, which is
suitable for some special locations where there is no more space
for rear maintenance.
3. Cabinet front service type is suitable for small size screen
while module front service type is suitable for any size.
The main characters of this kind of display:
1. Good heat dissipation capability
2. Strong water-proof
3. Strong high temperature of tolerance
4. Double face maintenance design of Lock and Magnetic suction
5. No cabinet - Module front service type has no cabinet, which can
easily make a screen with modules.
6. Use Save power drive IC- save around 25-36% power, maximum power
consumption 500w/m2
7. Thin screen- ordinary screen need a 450mm- 650mm maintenance
access in order to rear maintenance, but front opening service type
don’t need maintenance assess.
8. High refresh rate and high gray scales
9. Good quality PCB suite
