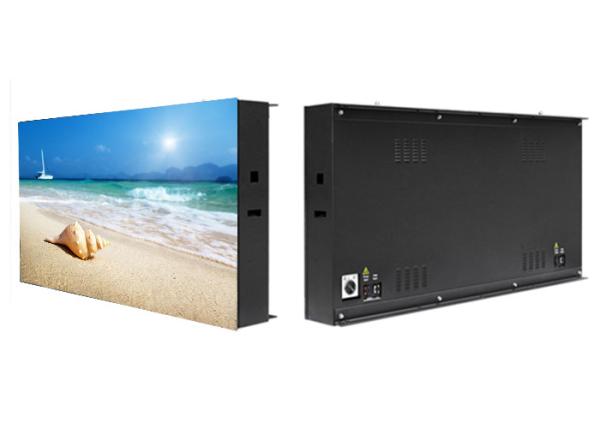

P10mm RGB Front Service LED Display , Epistar / Silan Digital
Display Board
Outdoor Front Opening led display screen Product Features:
1. High resolution, HD nice video advertising effect.
2. SMD 3-in-1 LED encapsulation confirm the high brightness, high
definition, seamless and flatness
3. Good protection level waterproof IP65, anti-corrosion, oxidation
resistance, long life span
4. Wide viewing distance, high definition, good uniformity
5. Brightness can be adjusted automatically according to different
surroundings by led software
6. Can be set to open and close the screen automatically by led
card
7. Can be mounted on the wall, by pole support on the street, on
top of building, etc
8. Support all types of video, graphics, animation, message, etc,
support PC online or offline control, also can remote control with
asynchronous system, or Wifi control, 3G control.
9. Widely used for outdoor commercial advertising, shopping mall
advertising, stage rental, traffic advertising, mobile truck
advertising, sports stadium advertising etc.
Remark:
1. IP65 SMD Outdoor LED Module Including the Data & Power Cables,
Waterproof Rubber Ring.
2. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED
Conrol Card Etc.
3. Delivery time: Deliver in 24 hours after received the payment.
4. Payment terms: Paypal/ or Wire Transfer 100% before shipment.
5. Shipping method: Ship the led display module by DHL, UPS, Fedex
and EMS.
6. Shipping cost: We will check the best shipping cost for you
after you tell us the quantity and shipping address.
Applications:
Commercial advertising: Square, Road side, High way, Airport,
Wharf, Hotel, Restaurant etc
SPECIFICATION OF C8 Outdoor Front Service LED Display
| Model | C10 |
| Pixel pitch(mm) | 10 |
| LED lamp | SMD 3535 |
| Module size(mm) | 320 x 320mm |
| Module weight(kg) | 1.55kg |
| Cabinet size(mm) | Customized |
| Pixel density(dots/㎡) | 10000 |
| Flatness error(mm) | ≤0.2 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 7800 nits |
| Color temperature(K) | 6500~9500 (Adjustable) |
| Contrast | 5000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 Hz |
| Gray scale | 16bit |
| Ave. power(W/㎡) | 900 |
| Max power(W/㎡) | 420 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Aluminum |
| Maintenance | Front and back maintenance |
| Protection | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 2S |
| Power requirements | AC90~264V |
| Life time(hrs) | 100,000 |
Why Choose front service led display Panel ?
1. Dual-maintenance, from both the front side and the rear side.
People usually use its front maintenance function.which just need
less than one minute to take out from the led display panel when
for maintenance,saving the labor and maintenance cost.
2. Easy Maintenance, easy to take the modules with a 2.5mm
hexagonal screwdriver,No screws, Just need to take out two
fastening screws from the module, we can do the replacing easily.
Which will save nearly 50% maintenance labor and time.
3. Reasonable PCB design, reliable and long life time,New plastic
cover with new mold, smaller module gaps and better screen
flatness.Excellent Waterproof structure design.
4. Cabinet with high hardness and pannel's flatness and Internal
thread way make it looks more simple. Any cabinet size can be
customized according to actual requirement.While Traditional led
display need to take maintenance room into consideration, however
front service led display panel solution will less your worry on
these problems.
Product Introduction
Where are the screen usually used?

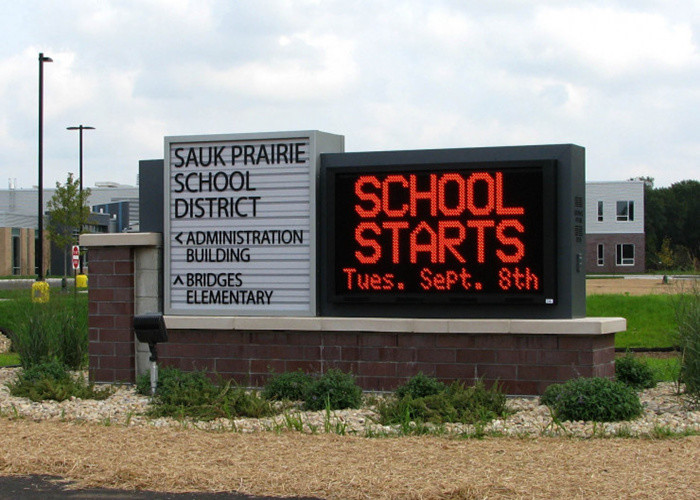

This series is usually used for special fixed led display, which
has small space behind screen so that cannot provide with a
maintenance access, so they can only maintain in front. They are
widely used in Advertisement, Hostel, School, Stations, etc.
The advantages of this kind of display:
1. Easy installation and light weight can make it amount in the
wall or lift against the wall.
2. Front access design allows to make thicker LED display, which is
suitable for some special locations where there is no more space
for rear maintenance.
3. Cabinet front service type is suitable for small size screen
while module front service type is suitable for any size.
The main characters of this kind of display:
1. Good heat dissipation capability
2. Strong water-proof
3. Strong high temperature of tolerance
4. Double face maintenance design of Lock and Magnetic suction
5. No cabinet - Module front service type has no cabinet, which can
easily make a screen with modules.
6. Use Save power drive IC- save around 25-36% power, maximum power
consumption 500w/m2
7. Thin screen- ordinary screen need a 450mm- 650mm maintenance
access in order to rear maintenance, but front opening service type
don’t need maintenance assess.
8. High refresh rate and high gray scales
9. Good quality PCB suite
