    Rear Maintenance Full Color Outdoor Led Display 6mm 3 in 1 27777 dots/sqm Pixel

    Ask Lasest Price
    Brand Name : Lecede
    Model Number : Q6
    Certification : CE ROHS FCC UL ETL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 ㎡/month
    Delivery Time : 15~30 days after deposit
    • Product Details
    • Company Profile

    Rear Maintenance Full Color Outdoor Led Display 6mm 3 in 1 27777 dots/sqm Pixel

    Rear Maintenance Outdoor Full Color LED Display Screen 6mm 3 in 1


    Product Features


    1. High brightness and adjustable


    2. SMD 2727 Surface mounted


    3. Wide viewing angle,excellent white color balance


    4. High reliability and long lifespan (MTBF ≥ 10000 hours), High grayscale (16 bits) with perfect visual


    performance


    SPECIFICATION OF Q6 Outdoor Full Color LED Display Screen


    ModelQ6
    Pixel pitch(mm)6
    ConfigurationSMD 2727 lamp
    Module dimension(mm)192x 192mm
    Module weight(kg)0.5
    Cabinet dimension(mm)768x 768x 120mm
    Pixel density(dots/㎡)27777 dots
    Flatness error(mm)≤0.2
    Viewing angle140°/140°(Horizontal/Vertical)
    Brightness(cd/㎡)6500
    Color temperature(K)5000~9500 (Adjustable)
    Contrast4000:1
    Repetition frequency50/60Hz
    Refresh frequency(Hz)≥1920
    Gray scale65536
    Ave. power(W/㎡)780
    Max power(W/㎡)400
    Working temp./humidity-10~40℃/10%~80%RH
    Storing temp./humidity-20~60℃/10%~85%RH
    Cabinet materialAluminum / iron
    MaintenanceRear maintenance
    ProtectionIP65/IP65
    Driving modeConstant current driver
    Scanning1/4 S
    Power requirementsAC90~264V, 47~63Hz
    Life time(hrs)100,000

    Advantages OF Q6 Outdoor Full Color LED Display Screen


    1. New mask design makes Q6 LED light almost zero reflection, which ensures the screen displaying


    effect


    2. Unit module of Q6 cabinet adopts to high-temperature spraying technology, the antirust function is


    greatly improved


    3. Q6 Module surface flatness is ± 0.2mm, the entire screen has good flatness


    4. For improving the service life, Q6 PCB is made by wave soldering process with the green oxygen


    isolation layer, which prevents the line of moisture and oxidation.


    Benefits of Lecede Q6 Outdoor Full Color LED Display Screen

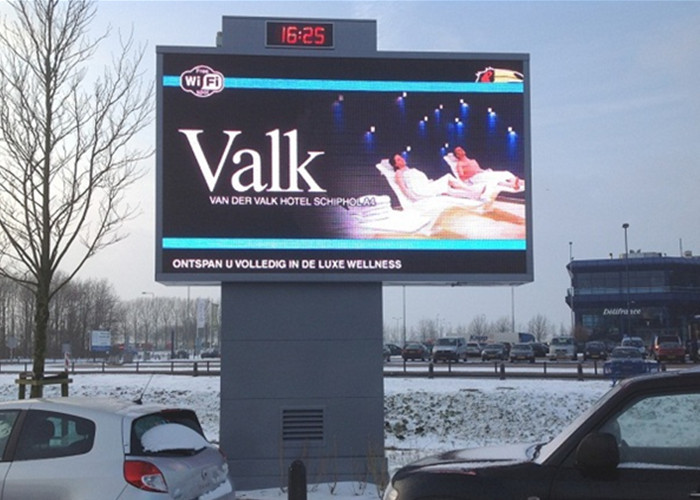

    Q6 Outdoor full color LED display could be used in outdoor environment such as airport, highway,


    cultural or relax square, commercial walking street, residential sub-district, downtown, with various


    real-time signal sources and the speciality of waterproof, dustproof, staticproof, its purpose is to


    propagandize outdoor advertising or play the important news or events or TV program etc.
