    P8 Curved Screen Led 1024mmx 1024 mm Cabinet Size WIth Large Viewing Angle

    Ask Lasest Price
    Brand Name : Lecede
    Model Number : P8
    Certification : CE ROHS FCC UL ETL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 ㎡/month
    Delivery Time : 15~30 days after deposit
    • Product Details
    • Company Profile

    P8 Curved Screen Led 1024mmx 1024 mm Cabinet Size WIth Large Viewing Angle

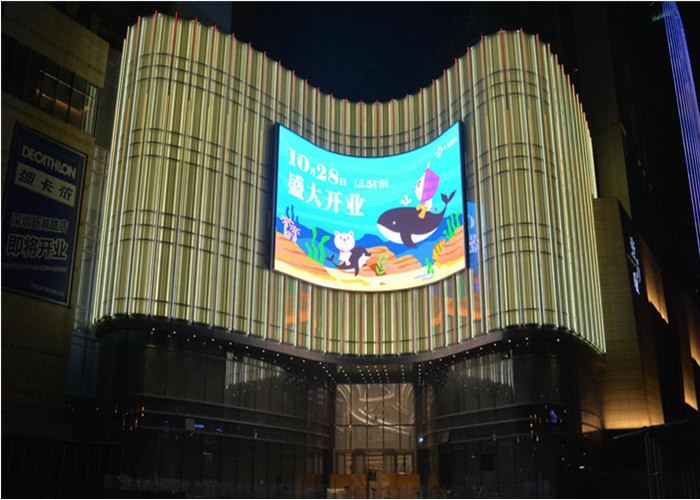

    P8 Outdoor Full Color Curved LED Screen High Brightness WIth Large Viewing Angle


    Description:


    1. High Brightness even under sunlight ,Light Weight by using die-casting Aulminum Cbinet

    2. Good waterproof IP65 for front and IP54 for rear,anti-corrosion,antifogging,long life


    span>100000Hours

    3. High brightness up to 6800CD, Long view distance from 100M away


    4. Made with high quality Epistar leds keep high quality, low lighting decay, energy saving

    5. Brightness can be adjusted automatically according to different surrondings,can be set to open and


    close the screen on fixed automatically

    6. Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of


    live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics,


    antimation etc, connect with PC computer or network, also can remoto control with synchronous system.

    7. Cabinet size and materials can be customized according different projects


    LED Display Specification

    The specifications of modules
    ItemsParameter
    Product ModelP8 Full Color Led Module
    Module size256mm*128mm
    Pixel pitch8mm
    Pixel density15625dots/m2
    Pixel configuration1R1G1B
    Module resolution32dots(W)*16dots
    Module maximum power consumption20W
    Module Weight0.36kg
    Driving methodConstant Current Driving
    Scanning method1/4 scan
    InterfaceHUB75
    Brightness≥6500cd/m2
    The specifications of cabinets
    Cabinet size1024mm*768mm
    Module quantity24pcs
    Power supply5V/40A 5V/60A
    Cabinet resolution128*96dots
    Optimal viewing distance86M~100M
    Optimal viewing angle160°(W) 120°(H)
    RHWorking temperature(Work :-20°C~+50°C)
    System operating humility10%-95%
    The specifications of power supplier
    Operating VoltageAC220V±10%
    Average power consumption350W/H
    Maximum power consumption≤760W/m2
    Electric current≤20mA(single LED)
    The specifications of control card
    Control PanelsPentium4 or above
    Operating systemWIN98/2000/NT/XP
    Control modelSynchronization with PC
    The specifications of the main technical parameters
    Driving deviceConstant Current Driving
    Refresh rate≥1000HZ
    Grey scaleRGB Each 256, can display 16.7M colors)
    MTBF≥9000hours
    Power switchAutomatic Switch
    Display Mode800*600/1024*768/1280*900

    P8 Curved Screen Led 1024mmx 1024 mm Cabinet Size WIth Large Viewing Angle
