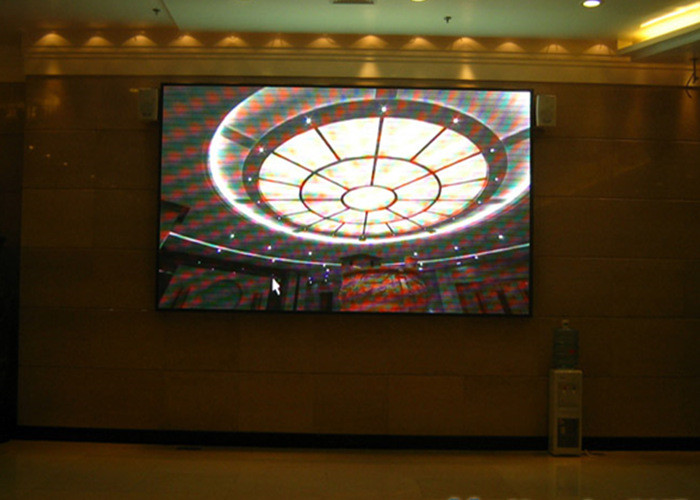

SMD P2.5 Indoor Fixed Led Display Hotel / TV Station / Auditorium

Product Description

Advantage:

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-

distributed current, low power consumption and fast heat dissipation.

4. Ultra high brightness, low attenuation, high reliability and weather ability.

5. High contrast ratio. Adopting black lamps can improve the contrast ratio by 50%.

6. High refresh rate, high gray scale, ghost-canceling, low power consumption, low EMI, anti-creeping,

multi-route redundancy backup-supporting, and dot-by-dot-calibration.

Specifications:

Item Description

1 Pixel Pitch 2.5mm

2 Module Size 160*160mm

3 Pixel Density 160000dots/s.q.m

4 Pixel composition 1R1G1B

5 LED Type SMD2121

6 Module Resolution 64*60

7 Power Consumption of Module 30W

8 Standard Cabinet Size 480*480mm

9 Cabinet Resolution 192*192

10 Cabinet Weight 30Kg

11 Driving IC MBI5124

12 Driving Method 1/32 Scan Constant Current Driving

13 White Balance Luminance(CD/s.q.m) ≥2500cd/s.q.m

15 Operating Environment Temperature -20℃—60℃ Optional

16 Operating Voltage 220V±10% or 110V±10%

17 Grey Scale Display Colors≥65.7trillion color(Synchronized)

18 Brightness Adjustment 1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of

each color can be adjusted automatically

19 Input Signal RF,S-Video RF, S-Video, RGB, RGBHV, YUV

20 Control System PC+ DVI display card+ sent card+ receive card

The design of P2.5 full color indoor advertising led display has the features of "light","thin", "fine",

"penetrate ". Convenient installation with application for the stage and surrounding. This product has

been applicated at many fields such as stage, bar, entertainment TV and so on, it has been shown the

unique artistic charm and aesthetic feeling of space imagination. The brightness of the P5 full color

indoor advertising led display can be adjusted from 500 nits to 2000 nits without damaging the gray level,

matching with calibration technology, it has the great expressive color.


The P2.5 full color indoor fixed led display is with convenient installation, and flight connectors

connecting. Now it has become the most popular fashion elements at the digital stage and bar.

High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect

effect.


P2.5 SMD Indoor Fixed Color LED Display Screen Features

1. The total amount of heat reduced

Using energy-saving (low constant current from the control point), high efficiency constant current chip;

Using high brightness and high efficiency of LED lamps.

2. The automated process

All using SMD process, fully automated machine operation, reducing human error and damage and

improves reliability.

3. low failure rate

Using sophisticated type of material, in terms of testing: instrument light intensity distribution, it is a direct

measurement of the LED lamp light intensity, viewing angle, wavelength, and other optical properties;

aging test LED lamps attenuation; an IC testing stand, strict control the quality of the IC. High-

temperature aging at the end of the production process and cabinet vibration test, good control of Weld

and other issues.

4. fast locks and assembling pins, flatness and seamless are greatly increased, less than 0.01mm , easy

to install and dismantle

5. Seamless connection, less than 0.1mm between 2 cabinet.


Technical Specification
