Outdoor Advertising LED Display Screen P8 Full Color Light Weight

    Buy cheap Outdoor Advertising LED Display Screen P8 Full Color Light Weight from wholesalers

    Buy cheap Outdoor Advertising LED Display Screen P8 Full Color Light Weight from wholesalers
    • Buy cheap Outdoor Advertising LED Display Screen P8 Full Color Light Weight from wholesalers
    • Buy cheap Outdoor Advertising LED Display Screen P8 Full Color Light Weight from wholesalers

    Outdoor Advertising LED Display Screen P8 Full Color Light Weight

    Ask Lasest Price
    Brand Name : Lecede
    Model Number : Q8
    Certification : CE ROHS FCC UL ETL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 ㎡/month
    Delivery Time : 15~30 days after deposit
    • Product Details
    • Company Profile

    Outdoor Advertising LED Display Screen P8 Full Color Light Weight


    Outdoor Advertising LED Display Screen P8 Full Color Light Weight Led Screen

    Product Features

    1. The first level LED chip from Taiwan Epistar

    2. With pure golden wire connection in LED

    3. Grand A row material for module frame and mask

    4. 4 layers PCB and copper plating thickness > 18mm

    SPECIFICATION OF Q8 Outdoor Advertising LED Display Screen

    ModelQ8
    Pixel pitch(mm)8
    ConfigurationSMD3535
    Module dimension(mm)320x160
    Module weight(kg)0.5
    Cabinet dimension(mm)960x960x120
    Pixel density(dots/㎡)15625
    Flatness error(mm)≤0.1
    Viewing angle140°/140°(Horizontal/Vertical)
    Brightness(cd/㎡)6600
    Color temperature(K)5000~9500
    Contrast4000:1
    Repetition frequency50/60Hz
    Refresh frequency(Hz)1920
    Gray scale65536
    Ave. power(W/㎡)400
    Max power(W/㎡)800
    Working temp./humidity-10~40℃/10%~80%RH
    Storing temp./humidity-20~60℃/10%~85%RH
    Cabinet materialIron/Aluminum
    MaintenanceRear
    ProtectionIP65/IP65
    Driving modeConstant current driver
    Scanning1/4
    Power requirementsAC90~264V, 47~63Hz
    Life time(hrs)100,000
    CertificateCE ROHS FCC UL ETL, etc.


    Advantages Q8 Outdoor Advertising LED Display Screen

    1. Lecede Q8 is high refresh rate, high brightness and high contrast which make the screen with no delay


    and smear phenomenon in direct sunlight.

    2. Lecede Q8 is energy saving: Low electric current, high-bright lamps, equipped with PFC switching


    power supply that save 30% electricity.

    3. The brightness of Lecede Q8 is adjustable to meet the need of changing environment.

    4. Lecede Q8 has wide viewing angle: The horizontal and vertical viewing angles are so wide that it is


    suitable for wide horizontal.

    5. Lecede Q8 is environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.

    Benefits of Q8 Outdoor Advertising LED Display Screen

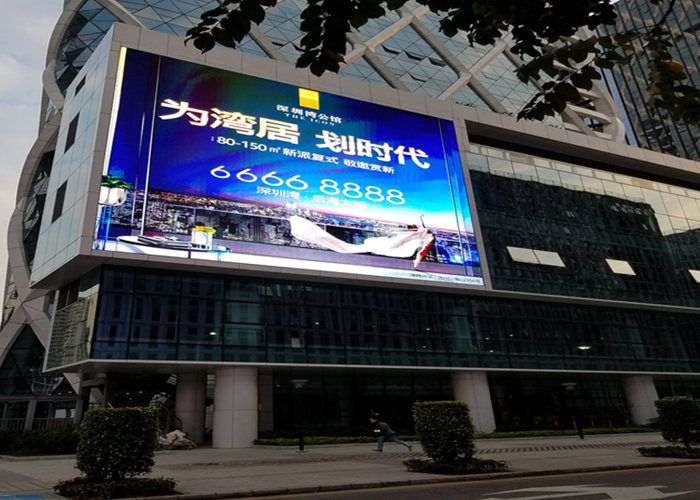

    Lecede Q8 outdoor advertising LED display screen has many benefits. First of all, the image of our Q8


    outdoor LED screens is extremely clear and furthermore the vivid colours ensure that your adverts pop


    out and come to life! Another benefit is that the content can be easily adjusted to any situation with


    our user-friendly software. Reliable in practically all weather conditions, from polar cold to desert heat.
