    Gymnasium RGB Indoor Fixed LED Display P2.5 SMD 1515 High Contrast Ratio

    Ask Lasest Price
    Brand Name : Lecede
    Model Number : X2.5
    Certification : CE ROHS FCC UL ETL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 ㎡/month
    Delivery Time : 15~30 days after deposit
    • Product Details
    • Company Profile

    Gymnasium RGB Indoor Fixed LED Display P2.5 SMD 1515 High Contrast Ratio

    Gymnasium RGB Indoor Fixed LED Display P2.5 High Contrast Ratio


    The P2.5 indoor fixed led display is a 1/32 current scan high cost-cffective RGB full color Indoor led


    display with high contrast ratio 5000:1. The indoor led display is using black SMD1515 leds from


    Nationstar brand, it offers great image quality and reliable operation cycle and longer lifetime. Customer


    can choose to use SMD2121 leds if need. SMD2121 is bigger SMDs with higher brightness, can upto


    1200 nits brightness. By adopting MBI processing IC, the refresh rate can acchieve 3840hz, its a good


    led display product for indoor events.


    The module sizes of P5 indoor advertising led display is 160mm*160mm, 240mm*180mm and


    320mm*160mm, customer can choose any one of them according to the real need of the led display


    video wall project, and the led cabinet material can be steel or aluminum for indoor fixed installation.

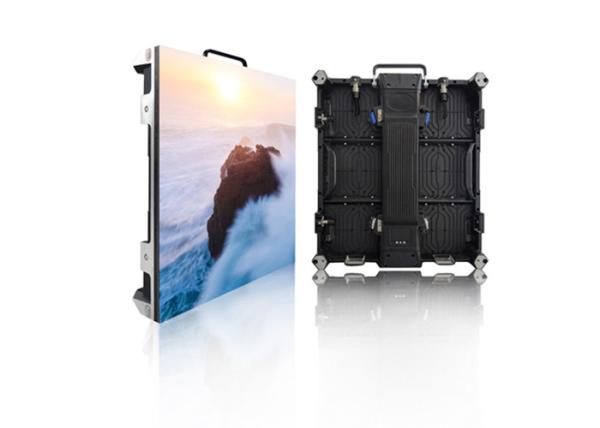

    For indoor rental application, the P2.5 indoor led display can use 480mmx5400mm,


    480mmx480mm or even 640mmx640mm diecasting aluminum rental type led cabinet.


    Major Features


    1. color spots or picture shade will be removed through the adjustment of brightness and color by each


    independent pixel.


    2, adopted with self developed steel structure and special kits will be kept in good flatness and


    smoothness.


    3, High refresh rate >3840 hz.


    4, According to environmental changes the brightness can be adjusted automatically for energy saving.


    (if need)


    5, Apecial PVC kits are adopted to protect from corrosion according to coastal weather.


    6, according to environmental changes the brightness can be adjusted automatically for energy saving.


    7, auto power on/off, work unattended.

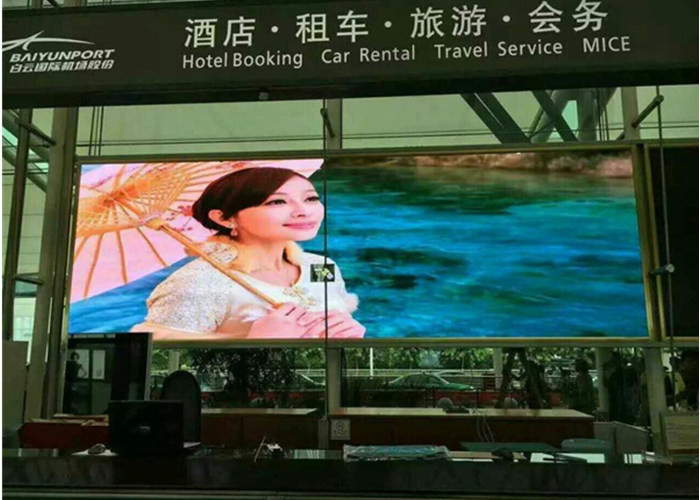

    8. Application for Shipping Mall; Station; Airport; Gymnasium; and any other indoor places.


    Technical Specification


    1Real pixel pitch2.5mm
    2Viewing Distance>2.5m
    3Real pixel density160000/m2
    4LED module160mmx160mm/320mmx160mm/240mmx180mm
    5LED cabinet480mmx540mm/640mmx640mm/960mmx960mm
    6Drive ICMBI
    7Display colors4096*4096*4096
    8Brightness≥880cd/m2
    9Grey levelRed, Green, Blue 65536 grade/Each
    10Viewing angleHorizontal:≥140°,Vertical:≥140°
    11Best viewing distance2.5m-80m
    12Valid viewing distance<100m
    13Frame frequency≥60HZ
    14Refresh frequency>3840HZ
    15Driving method1/8 scan constant current
    16Brightness adjustmentAutomatically or manually
    17Control methodSynchronized with PC
    18Display mode1024*768/2048*640/1920*1080...
    19Visual inputVGA mapped /NTSC/PAL
    20Information transmission methodSynchronized and balanceable transmission
    21Communication cableUTP Category 5/multi-mould optical fiber/monomode fiber
    22Scotoma rate≤1/10000
    23Continuous operation time≤48 hours
    24LED Lifespan≥100,000 hours
    25Level up degree≤+/- 1mm
    26Assembly precision between PCB≤1mm
    27Max. power consumption≤600w/m2
    28Average power consumption≤250w/m2
    29Input voltageAC 220V/110V /50 HZ+/-10%
    30Operation envionmentTemperature: -20°C~+60°C
    31Operation systemWindows OS
    32Input signalS-video, VGA, RGB, Composite video, SDI etc.
    33Ingress gradeIP43
    34Video display functionVaries of text, graphics, pictures, flashes, and any signals from TV, VCB, DVD, camera and scanner can be synchronized with PC, Support PAL/NTSC
