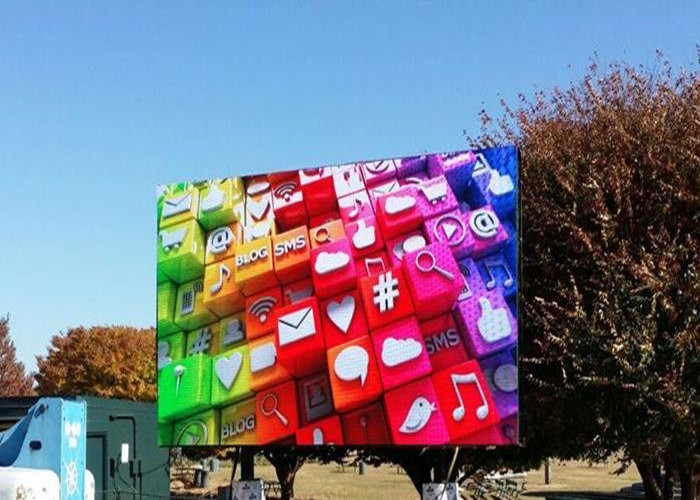

High Brightness Front Service LED Display P9.5mm 1ft x 1ft
Product Features
1. High strength module suite ensures good heat dissipation which
allows outdoor daytime use and
improves contrast without sacrificing viewing angle, and guarantees
stability of screen
2. With high gray scale, product can deliver excellent image
colors. It’s an ideal solution for both indoor
and outdoor advertising applications
3. Special PCB design with lower current to save energy more than
30%. Selected small tolerance
wavelength led lamps ensure high uniformity
SPECIFICATION OF C9.5 Outdoor Front Service LED Display
| Model | C9.5 |
| Pixel pitch(mm) | 9.5mm |
| LED Configuration | SMD 2727 |
| Module size(mm) | 304.8 x 304.8mm |
| Module weight(kg) | 1.1 |
| Cabinet size(mm) | Customized |
| Pixel density(dots/㎡) | 11022 |
| Flatness error(mm) | ≤0.2 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 7300 nits |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 5000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 Hz |
| Gray scale | 16bit |
| Ave. power(W/㎡) | 990 |
| Max power(W/㎡) | 490 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Aluminum or Iron |
| Maintenance | Front and Rear maintenance |
| Protection | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 2S |
| Power requirements | AC90~264V |
| Life time(hrs) | 100,000 |
Advantages OF C9.5 Outdoor Front Service LED Display
1. Fast Module Assembling and Maintenance: No need a lot of screw
works, just one wrench to loosen or
fasten two screws, then we can take out or assemble back.one module
within 5 seconds. No concerns on
screw falling. Greatly ease the maintenance work and save much time
2. Support Multiple Installations: C9.5 is the best option for
outdoor commercial advertising. The versatile
sign solution can be used to wall mounted installation, suspension
installation and wall embedded
installation and so on. Can be applied in retail stores, small
shops, gas stations, bus stations, train
stations etc. Very easy to suspend and install. In addition,
smaller screen size is easier to get installation
permit and more possible business
3. High IP Rating, Perfect For Outdoor Advertising: Thanks to
special waterproof cabinet structure (no
rear doors), C9.5 sign screen can achieve IP65 waterproofing.
Aluminum material and ventilation design
make sure perfect cooling effect. All these key features are
critical for outdoor commercial advertising
activities. No matter it is a small size LED screen or a huge
commercial LED billboard, C9.5 will present
you the trustworthy quality and high profile screen performance
Benefits of Lecede C9.5 Outdoor Front Service LED Display
C9.5 integrated front service led signs advertising solution with
light sensor, temperature sensor,
asynchronous control card, which support Wireless and wire control
ways. Our front service cabinet size
can be customized freely. And you needn’t to worry about the
installation structure, we provide you soft
solution which enables you to hanging or fixing.
