P6.667 Outdoor Front Service LED Display 48*48 Dots Epistar LED
Chip 320x 320 mm
Product Features
1. High strength module suite ensures good heat dissipation which
allows outdoor daytime use and
improves contrast without sacrificing viewing angle, and guarantees
stability of screen
2. Replacing malfunction modules is easier and faster. which just
need less than one minute to take out
from the panel, realizing labor and maintenance cost saving
3. Good quality led chip with low led attenuation, best color
uniformity, low default rate and long lifespan
SPECIFICATION OF C10 Outdoor Front Service LED Display
| Model | C6.667 |
| Pixel pitch(mm) | 6.667mm |
| LED lamp | SMD 2727 |
| Module size(mm) | 320 x 320mm |
| Module weight(kg) | 1.2kg |
| Cabinet size(mm) | 960x960 mm |
| Pixel density(dots/㎡) | 22478 |
| Flatness error(mm) | ≤0.2 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 7100 nits |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 5000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 Hz |
| Gray scale | 16bit |
| Ave. power(W/㎡) | 980 |
| Max power(W/㎡) | 500 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Aluminum or Iron cabinet |
| Maintenance | Front and Rear maintenance |
| Protection (Front/rear) | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 6S |
| Power requirements | AC90~260V |
| Life time(hrs) | 100,000 |
Advantages OF C6.667 Outdoor Front Service LED Display
1. General Module Size: C6.667 is with module size of 3320x320 mm.
Different pixel pitch models
share same module size, which offers more choices for each project.
All the modules are with same front
maintenance design

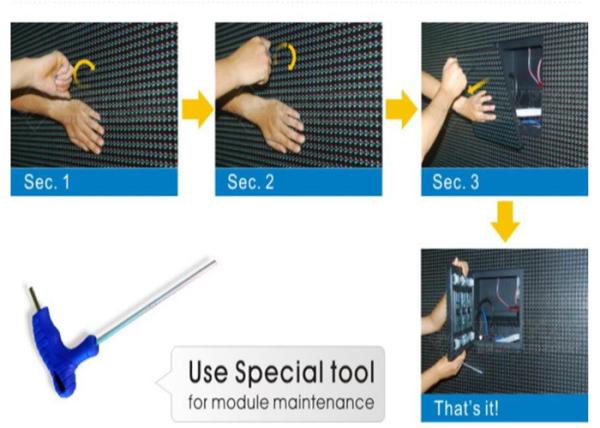

2. Fast Module Assembling and Maintenance: No need a lot of screw
works, just one wrench to loosen or
fasten two screws, then we can take out or assemble back.one module
within 5 seconds. No concerns on
screw falling. Greatly ease the maintenance work and save much time
3. Convenient Sign Design, Easy to Install: C6.667 LED Sign is very
easy to install, not picked on
installation environment. Most structure frame is integrated on the
sign, no complicated steel structure
needed, just fix the sign to the pole or to the wall. Extremely
save installation time and labor cost
4. Support Multiple Installations: C6.667 is the best option for
outdoor commercial advertising. The
versatile sign solution can be used to wall mounted installation,
suspension installation and wall
embedded installation and so on. Can be applied in retail stores,
small shops, gas stations, bus stations,
train stations etc. Very easy to suspend and install. In addition,
smaller screen size is easier to get
installation permit and more possible business
Benefits of Lecede C6.667 Outdoor Front Service LED Display
C6.667 integrated front service led signs advertising solution with
light sensor, temperature sensor,
asynchronous control card, which support Wireless and wire control
ways. Our front service cabinet size
can be customized freely. And you needn’t to worry about the
installation structure, we provide you soft
solution which enables you to hanging or fixing.
